The Medium Speed 4 Stroke Trunk Piston Engine

The Piston





Pistons for medium speed trunk piston engines which burn residual fuel are composite pistons; i.e the crown and the skirt are made of different materials.

The crown is a heat resisting steel forging which may be alloyed with chromium, molybdenum and nickel to maintain strength at high temperatures and resist corrosion. It is dished to form a combustion chamber with cutouts to allow for the valves opening.  The topland (the space between the top ring and the top of the piston) may be tapered to allow for expansion being greater where the piston is hottest.

The skirt can either be a nodular cast iron or forged or cast silicon aluminium alloy. Aluminium has the advantage of being light, with low inertia, reducing bearing loading. However because aluminium has a higher coefficient of expansion than steel, increased clearances must be allowed for during manufacture. This means that the piston skirt clearance in the liner is greater than that for cast iron when running at low loads. The skirt transmits the side thrust, caused by the varying angularity of the con rod, to the liner. Too big a clearance will cause the piston to tilt.

The piston pin for the con rod small end bearing is located in the piston skirt. The piston pin floats in the piston skirt and is located in place by circlips. Depending on the material used for the skirt (esp. cast aluminium), a bushing may be used for the pin.

The piston rings may be located in the crown  or in both crown and skirt. Normally, the rings are chrome plated or plasma coated to resist wear. Because the liner is splash lubricated, an oil scraper (oil control) ring is fitted to the piston skirt.

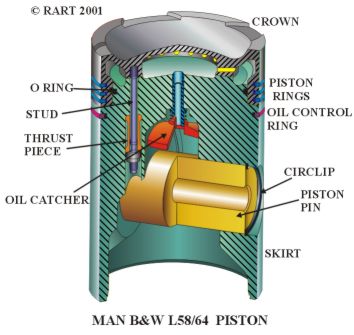

The piston is oil cooled. This is achieved by various means; The simplest is for a jet of oil to be directed upwards from a hole in the top of the con rod onto the underside of the crown. A more efficient method is to use an oil catcher as shown in the picture above. This directs oil into the cooling spaces on the underside of the crown where the cocktail shaker effect of the reciprocating piston ensures a positive cooling effect. It is unusual for the oil return temperature to be monitored (unlike the 2 stroke slow speed crosshead engine, where both temperature and quantity are monitored).

Some engines are fitted with one piece pistons manufactured from either cast iron or silicon alloy aluminium . These cannot be used with residual fuel, because the higher temperatures causes burning of the piston crown. Aluminium also suffers from carbon build up above 300 C. Ring grooves in aluminium pistons usually take the form of a chrome plated cast iron insert.

The Rotating Piston

The Rotating piston is used on the Sulzer ZA40 engine. Instead of a conventional piston pin and bearing, the top end consists of a two part spherical bearing. Inside the spherical top end of the con rod are two spring loaded pawls. These pawls engage with a ratchet ring which is connected to the piston. The ratchet ring has an uneven number of teeth.

As the con rod swings, the pawls engage alternately with the ratchet ring, rotating the piston.



The advantages of this system are

  • At each stroke a different part of the freshly oiled skirt is in contact with the part of the liner wall absorbing the side thrust. This reduces wear and the risk of seizure.

  • The rings rotate, so the ring gap is not always in the same position; this reduces local overheating due to blowby.

  • Because the loading on the spherical bearing is symmetrical, and because the piston is symmetrical (no hole for piston pin), the piston can be made with smaller clearances which reduces piston rocking.

The operating principle of the  ratchet is shown above. The arrow indicates the direction of the con rod swing.
